SFU 0303/2 (compatible to SFU 0302)
Desktop
19” Rack
without Display

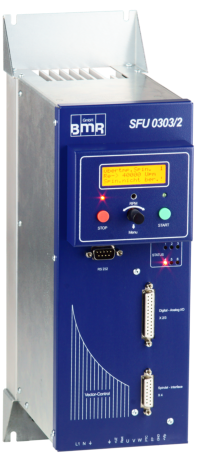

SFU 0303/2 Desktop
• The power solution for all kinds of spindles • Highest efficiency in spindle drive with lowest power losses in spindle, due to adjustable intermediate voltage circuit and 28,5 kHz PWM. • Powerful spindle drive with high output power reserves • High flexibility because of various I/Os and enclosure options • Oversized on-board 200W chopper-resistor for powerful braking and shortest cycle times • Plug and connection compatible • Mounting compatible with adjusted mounting brackets
Manual Supply connection Continuous output power 115V net: 230V net: max. 2.000 VA / S1-100% max. 3.000 VA / S1-100% Output voltage 115V net: 230V net: max. 110V max. 220V Continuous phase current Peak phase current Over current Output frequency Motor connection SSE: 10-pin: PE, U, V, W, PTC, FP, SGND, pluggable screw terminals 4mm² (more connection options on request) Spindle characteristics Spindle sensor inputs 2 Analog: 0-10V 6 Digital: 0-24V Control outputs 2 Analog: 0-10V 5 Digital: free to be setup 1 Digital: for pulse inhibitor relay outputs, 24VDC/1000mA, 125VAC/500mA Interface SSE: , – USB on operating panel – RS232, RS485 on SFU ,,, (9-pin. D-Sub-male) – Profibus as option max. dimensions W x H x D (mm) SSE: 113 x 355 x 205 Weight SSE: ca. 8,0 kg Protection Operating conditions 5 - 40°C / rel. humidity of air max. 85% TECHNICAL DATA max. 16, stored internally 115V, 50Hz, 1PH…230V, 50Hz, 1PH speed sensor, PTC, KTY, PT1000 IP20 Control inputs 11A 18A to be set up for max. 20s AC: 4.000Hz / 240.000 rpm DC: 1.667Hz / 100.000 rpm Accessories
Profibus Profinet etc… SFU-Communicator:
SFU 0303/2 (compatible to SFU 0302)
back Supply connection Continuous output power 115V net: 230V net: max. 2.000 VA / S1-100% max. 3.000 VA / S1-100% Output voltage 115V net: 230V net: max. 110V max. 220V Continuous phase current Peak phase current Over current Output frequency Motor connection SSE: 10-pin: PE, U, V, W, PTC, FP, SGND, pluggable screw terminals 4mm² (more connection options on request) Spindle characteristics Spindle sensor inputs 2 Analog: 0-10V 6 Digital: 0-24V Control outputs 2 Analog: 0-10V 5 Digital: free to be setup 1 Digital: for pulse inhibitor relay outputs, 24VDC/1000mA, 125VAC/500mA Interface SSE: , – USB on operating panel – RS232, RS485 on SFU ,,, (9-pin. D-Sub-male) – Profibus as option max. dimensions W x H x D (mm) SSE: 113 x 355 x 205 Weight SSE: ca. 8,0 kg Protection Operating conditions 5 - 40°C / rel. humidity of air max. 85% TECHNICAL DATA max. 16, stored internally 115V, 50Hz, 1PH…230V, 50Hz, 1PH speed sensor, PTC, KTY, PT1000 IP20 Control inputs 11A 18A to be set up for max. 20s AC: 4.000Hz / 240.000 rpm DC: 1.667Hz / 100.000 rpm Manual
