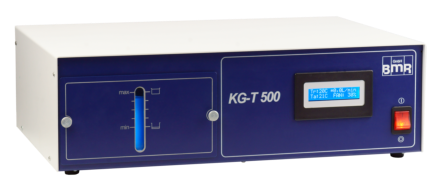

Cooling Unit KG-T 500
Cooling Unit KG-T 500
Overview
Homepage-Sicherheit
Cooling Unit KG-T 500 Nominal voltage Start input voltage Power input Cooling power Relais details Fuses LCD-Display Pipe aperture Cool fluid       Tank volume Flow rate Pressure max. dimensions W x H x D (mm) Desktop: 19": 441 x 140 x 334 483 x 177 x 326 Weight ca. 9,0 kg TECHNICAL DATA max. 30W (30V DC  / 1A) 2A 2-lines 100 - 250 V AC    /   f=50Hz 1,4 bar 80W (2P) max. 24V DC max. 700W  by ambient temperature <23°C Distilled water (with additives to  protection against corrosion) max. 3 l/min. Ø8 mm (outside diameter) 1,5 l
ü Air circulation cooling unit up to 700 W (continuous power 500W) An intelligent control algorithm provides an effective and economic cooling process Automatic operation without presettings On board fluid tank with level indicator Automatic flow monitoring with warning function
ü ü ü ü
Cooling Unit in a compact case Suitable for spindles with power up to 2 kW Cooling process controlled by microprocessor Status on LC-Display and interface

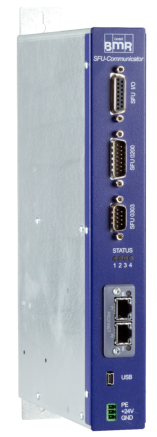

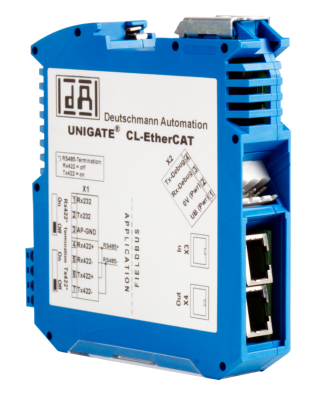

SFU-Communicator
Gateway for an easy connection of BMR frequency converters to higher level machine controls Support most industrial and fieldbus systems Designed for Industry 4.0 applications Interface for a mudluar, smart and compact system solution
ü Available in SSE design in a slim, rugged metal housing Modular structure of the SFU communicator (plug-in modules for various bus systems) Currently supported: Profibus. Others like EtherCAT, Common Ethernet, EtherNet / IP, DeviceNet, Profinet-IRT, BACnet/IP, CC-Link IE Field, CC-Link, Modbus TCP or Powerlink can also be implemented on request. Can be retrofitted and compatible with existing BMR frequency drives
ü ü ü SFU-Communicator Modul Supply Connections Socket Bus Socket SFU Socket  Communicator Socket supply Power input Peripherals Baud rate max. dimensions  W x H x D (mm) Weight ca. 2,0 kg 115.200 Baud (internal RS232) 44 x 312 x 185 4 DuoColor LED's  (red, green, yellow) TECHNICAL DATA 12 VA USB mini  (interface debug, update, conrtol) 24 V DC System plug in, 3 pole  (+Ub, Gnd, PE) Profibus: Sub-D 9 pole, other bus  systems according to specification SFU IO's Sub-D 9pole, SFU-Bypass 9 and 15 pole
SFU-Communicator

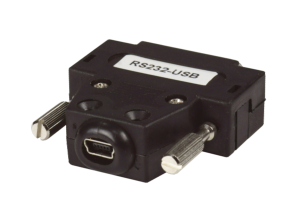

15 Pin Sub-D to Mini-USB
The adapter has to be plugged into the 15 pin Sub-D connector of the inverter. A mini USB cable can then be plugged into this and connected to the PC. The inverter can then be configured using the free terminal software. Compatible to: SFU 0200 SFU 0102 / 0202 SFU 0300
Terminal Software

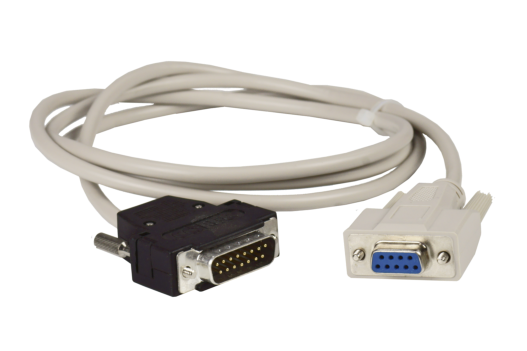

15 Pin Sub-D to RS232
This cable is used to connect the inverter to an RS232 interface. This can be a machine controller, or a PC to configure the inverter. The inverter can be configured using the free terminal software. Compatible to: SFU 0200 SFU 0102 / 0202 SFU 0300
Terminal Software

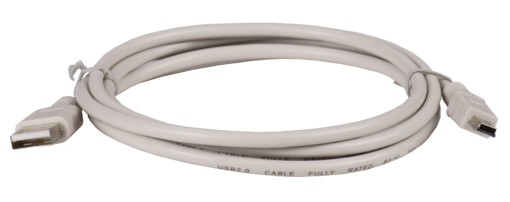

Mini USB cabel
This cable is used to connect the inverter to the PC. The inverter can be configured using the free terminal software. Compatible to: SFU 0103 / 0203 SFU 0156 SFU 0303
Terminal Software

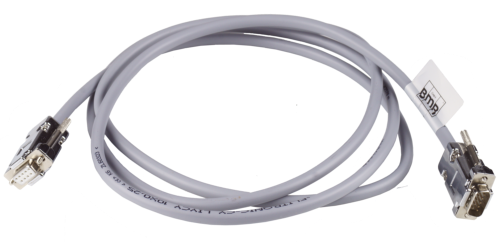

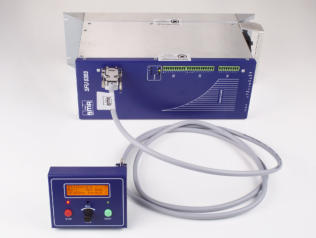

SFU0303 Controlpanel connection cable
This special cable enables you to operate the inverter and control panel separately from each other. This offers the advantage that, for example, the inverter can remain in the control cabinet, but the machine operator can operate the control panel easily accessible at the front of the machine or at the control cabinet door. It is also possible to connect several of these 2m long cables to each other. A guaranteed functionality has been tested up to 6m, but more is available on request. Compatible to: SFU 0303
Walpersdorfer Str. 38 91126 Schwabach Tel.: +49 (0)9122 - 63148-0 Fax.: +49 (0)9122 - 63148-29
Illumination Rings
optional accessories: power supply, illuminated on/off switch, touch dimmer module
Cooling Unit KG-T 500
Cooling Unit KG-T 500
Overview
ü Air circulation cooling unit up to 700 W (continuous power 500W) An intelligent control algorithm provides an effective and economic cooling process Automatic operation without presettings On board fluid tank with level indicator Automatic flow monitoring with warning function
ü ü ü ü
Cooling Unit in a compact case Suitable for spindles with power up to 2 kW Cooling process controlled by microprocessor Status on LC-Display and interface
We light up the dark! Don’t you know the problem, that despite of lighting systems, exactly at the point where you need to see something, a shadow appears or there is too less light? With the new spindle illumination rings this problem belongs to the past! Whether in plastics or aluminum housing
Ø inside Ø outside height LED‘s ring “33” 33,1 mm 51 mm 15 mm 21 LED’s ring “42” 42,1 mm 61 mm 15 mm 24 LED’s ring “45” 45,1 mm 63 mm 15 mm 24 LED’s ring “62” 62,1 mm 80 mm 15 mm 27 LED‘s
15 Pin Sub-D to Mini-USB
The adapter has to be plugged into the 15 pin Sub-D connector of the inverter. A mini USB cable can then be plugged into this and connected to the PC. The inverter can then be configured using the free terminal software. Compatible to: SFU 0200 SFU 0102 / 0202 SFU 0300
Terminal Software
15 Pin Sub-D to RS232
This cable is used to connect the inverter to an RS232 interface. This can be a machine controller, or a PC to configure the inverter. The inverter can be configured using the free terminal software. Compatible to: SFU 0200 SFU 0102 / 0202 SFU 0300
Terminal Software
Mini USB cabel
This cable is used to connect the inverter to the PC. The inverter can be configured using the free terminal software. Compatible to: SFU 0103 / 0203 SFU 0156 SFU 0303
Terminal Software
SFU0303 Controlpanel connection cable
This special cable enables you to operate the inverter and control panel separately from each other. This offers the advantage that, for example, the inverter can remain in the control cabinet, but the machine operator can operate the control panel easily accessible at the front of the machine or at the control cabinet door. It is also possible to connect several of these 2m long cables to each other. A guaranteed functionality has been tested up to 6m, but more is available on request. Compatible to: SFU 0303
